Product Description
BIGTREETECH Pad 7 Klipper Touchscreen – 7-Inch IPS All-in-One Display with Pre-installed CB1
The BTT Pad 7 is a powerful 7-inch IPS capacitive touchscreen designed as a complete Klipper control solution for 3D printers. It comes with Klipper and KlipperScreen pre-installed along with the BIGTREETECH CB1 core board, so you can start printing faster without extra configuration.
Featuring a vibrant 1024×600 resolution at 60Hz with 178° viewing angle and 500 cd/m² brightness, the Pad 7 delivers crisp visuals and smooth touch response with haptic feedback. The built-in ADXL345 accelerometer enables Klipper’s input shaping for resonance compensation, significantly reducing ringing and allowing higher print speeds with better quality.
Key Features:
- 7-inch IPS capacitive touchscreen with 5-point touch and subtle haptic vibration
- Pre-installed Klipper + KlipperScreen for instant setup
- Built-in CB1 V2.2 core board (Allwinner H616 64-bit 1.5GHz, 1GB RAM) with 32GB SanDisk card
- Detachable CB1 – easily upgrade to CM4 (replacement kit included)
- Wireless WiFi for remote control via smartphone, tablet, or PC
- Rich interfaces: USB 2.0×3, USB-A×3, USB-C, Ethernet (RJ45), CAN bus, SPI, HDMI, TF card slot, 3.5mm audio
- Adaptive auto backlight adjustment for eye comfort
- Magnetic holder for convenient mounting
- RGB status indicator and adjustable speaker volume
- Open source with full access to source code and firmware
BIGTREETECH Pad 7
Not only a Klipper Pad
Klipper Pre-installed
7-inch IPS Touch Screen
1024*600
178° Viewing Angle
CB1/CM4 Compatibility
Rich Expansion Interface
Open Source
Strategic Partnership
X
The cooperation between KLIPPER and BIGTREETECH makes firmware for 3D printing enthusiasts more convenient to use and helps to further enhance the printing experience. BIGTREETECH is committed to establishing a completel 3D printing ecosystem, striving to bring more possibilities to the 3D printing industry and pushing the technologicall advancement of 3D printers to make 3D printers faster, better, and easier.
Klipper Pre-Installed
Enjoy improved print speeds and the convenience of a pre-installed Klipper firmware, allowing your 3D printer to operate more efficiently and complete projects faster than ever before, while also saving you time on setup and configuration.
Upgrade Your Printing Speed and Quality
With the BIGTREETECH ADXL345 Module and Klipper's Input Shaper, you can elevate your print quality to new heights and achieve the finest model quality possible.
Enjoy Wireless Printing
Pad 7 provides you the flexibility to control your 3D printer either through its intuitive touchscreen or by wirelessly connecting to your smartphone, tablet, or computer via Wi-Fi.

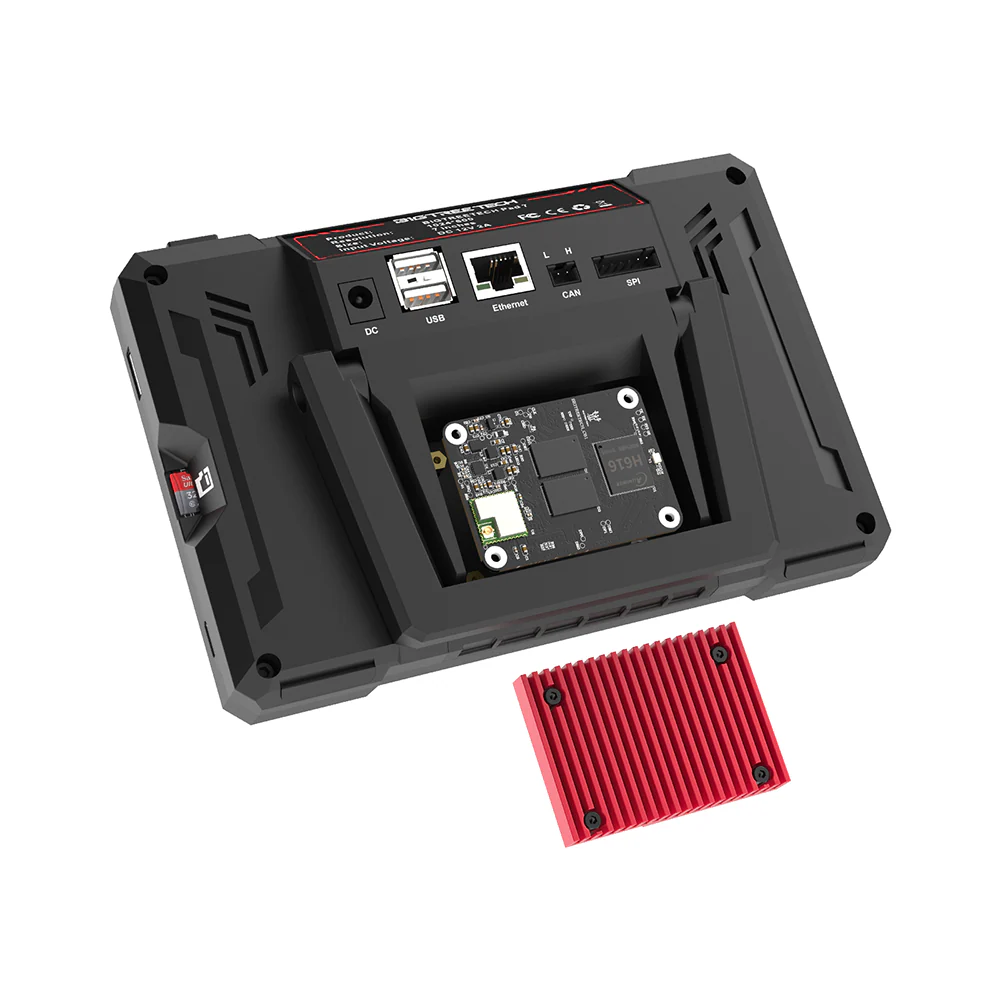

Powered by BIGTREETECH CB1 Core Board
Featuring a pre-installed CB1, the Allwinner H616 ARM Cortex-A53 processor (64-bit, 1.5GHz), provides a powerful computing platform for Klipper's smooth and seamless operation.

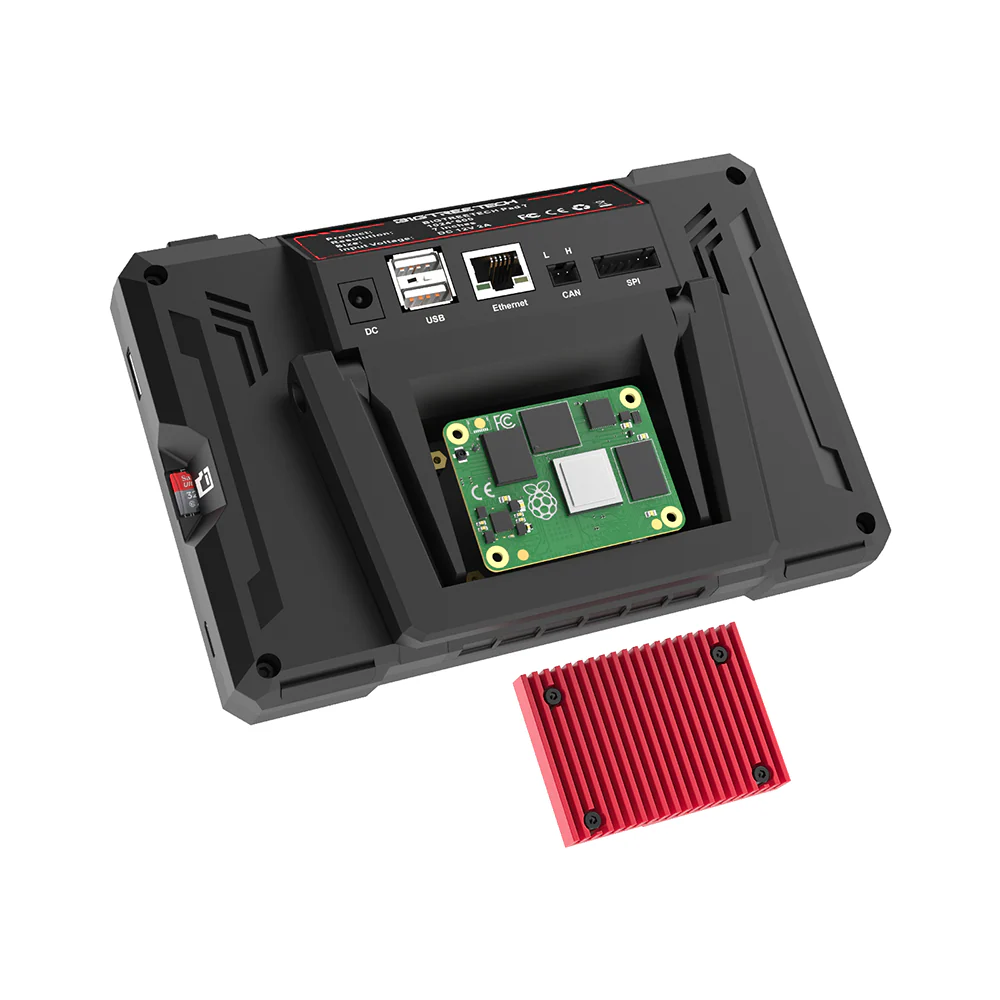

(Note: The CB1 can be detachable. If changing it to CB1 eMMC, it requires the screws and gaskets originally installed on CB1. If changing it to CM4, the CM4 replacement kit is already included in the package.)
Support running Klipper or Linux
Pad 7 is a KlipperScreen that can be used while printing, but it can also running Linux that can be used for daily entertainment, like watching videos or browsing the Internet.
Explore the Possibilities with Open Source
Pad 7 is open source, allowing developers and users to freely access and modify the source code to meet their personalized needs.
Compatibility & Expandability
Wide Compatibility
Thanks to open source, transferred from SD card or USB port, users can change firmware by edit the code. The Pad 7 can support Voron 2.4, VZbot, Ender-3, BIQU B1 SE Plus, etc.
*Note: At the moment the BIQU B1 is not fully supported by the Pad 7. If you plan to use the Pad 7 with a B1 then you may experience rare connectivity dropouts. Our engineers are working to resolve this. Other printers are unaffected.

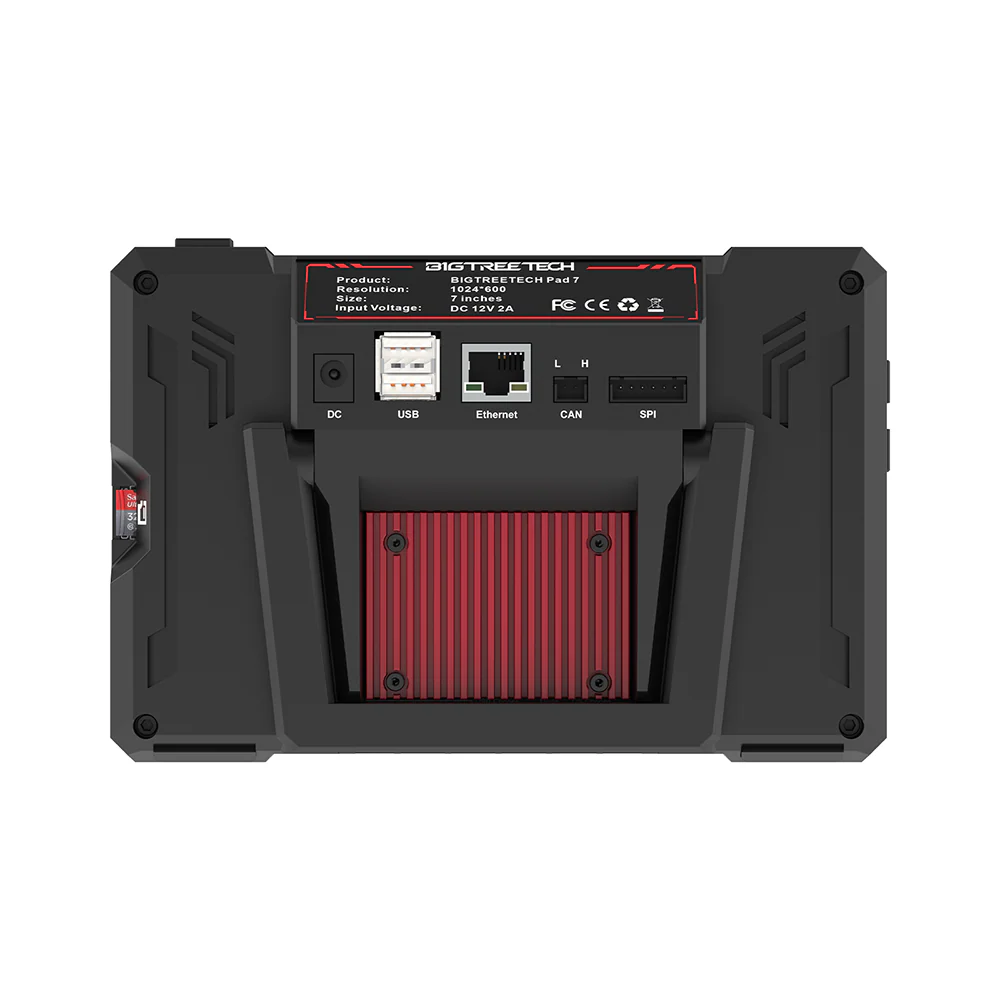

Rich Connectivity
• USB-A *3
• TF Card Slot
• USB-C
• CAN bus
• RJ45
• SPI Interface
• 3.5mm Audio Jack
*Note: At the moment the BIQU B1 is not fully supported by the Pad 7. If you plan to use the Pad 7 with a B1 then you may experience rare connectivity dropouts. Our engineers are working to resolve this. Other printers are unaffected.
Improved Using Experience

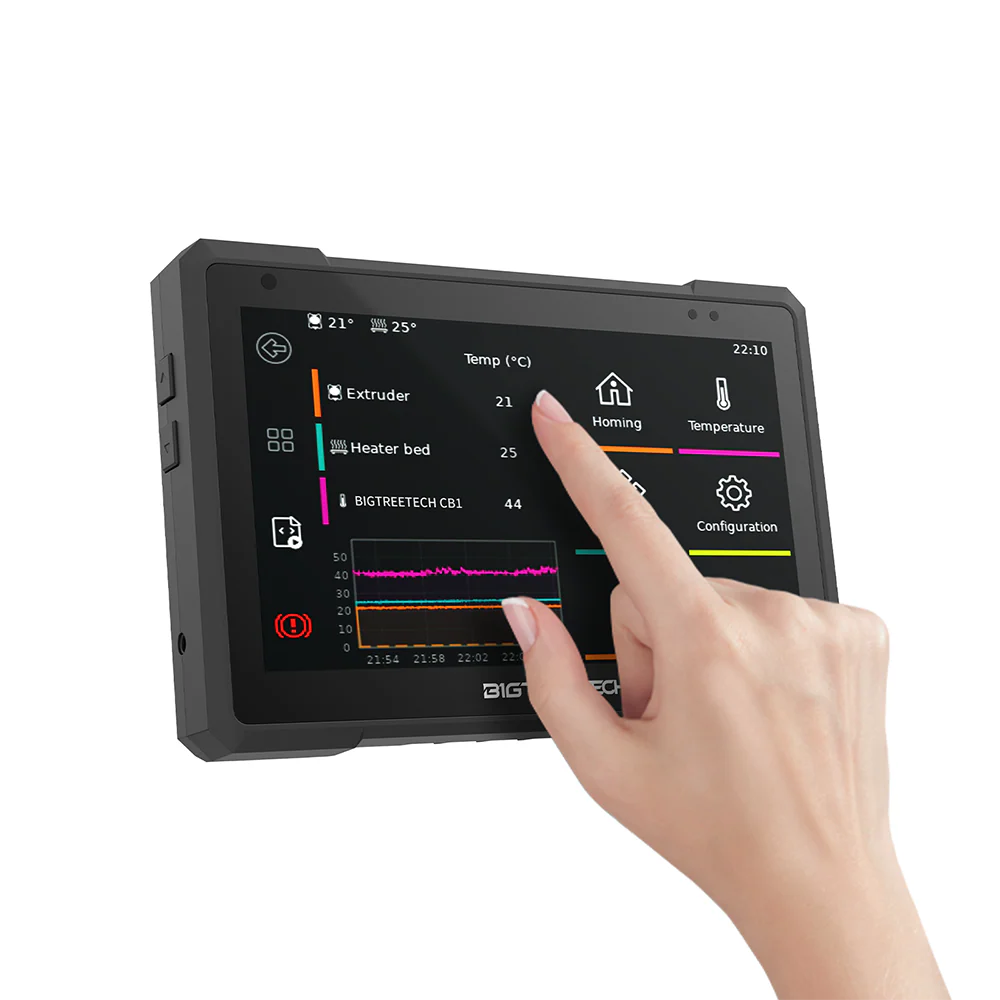

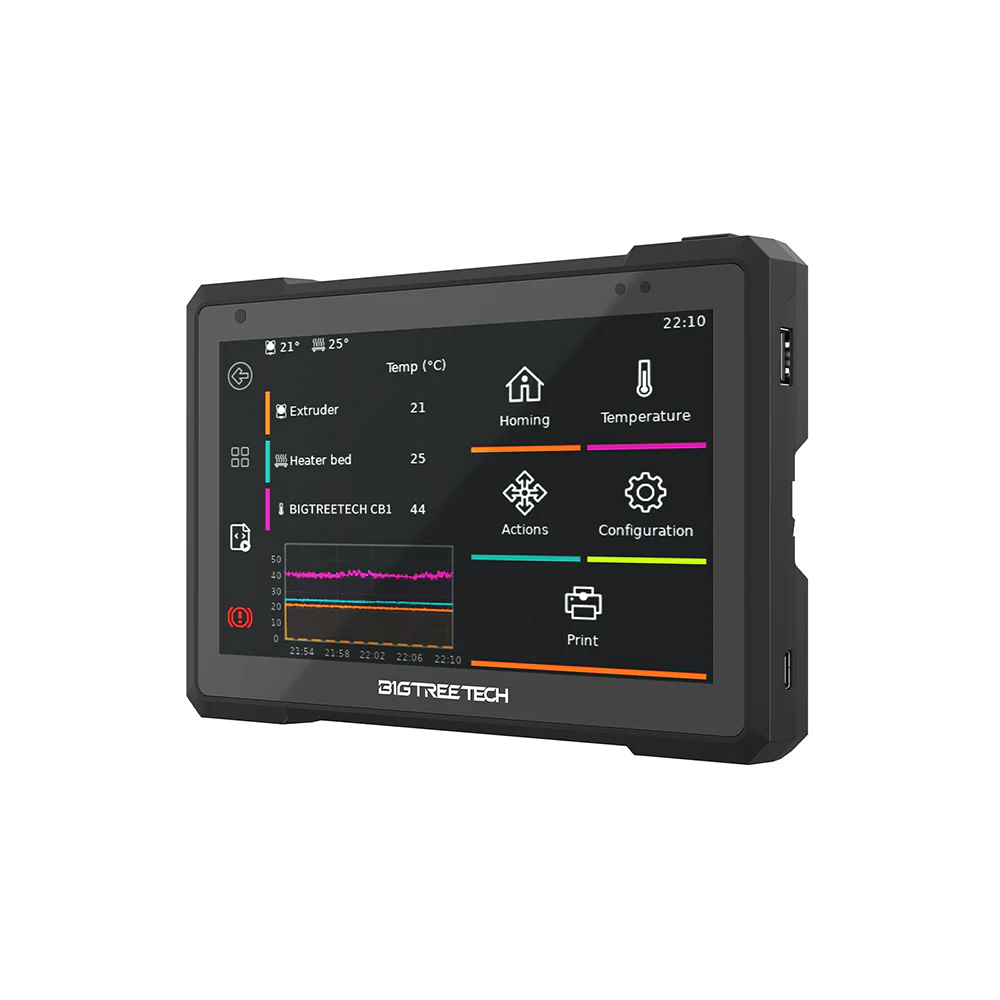

7- inch IPS Touch Screen
Features a 7-inch IPS capacitive touch screen with a resolution of 1024 × 600 and a 60Hz refresh rate, providing high definition and rich colors.
• Resolution: 1024×600
• View angle: 178°
• Status indicator: RGB
• Volume adjustable via button: Speaker
Touch Feedback
Each tap is met with subtle vibrations, providing a tactile confirmation of your actions.
Auto Backlight Adjustment
Pad 7 automatically adjusts its screen brightness based on your surroundings, providing optimal visibility and reducing eye strain.
Durable and Reliable
Featuring a high-quality IPS screen combined with a meticulously designed shell structure, ensuring excellent impact resistance. Even in the event of accidental drops, it is less likely to shatter or get damaged.

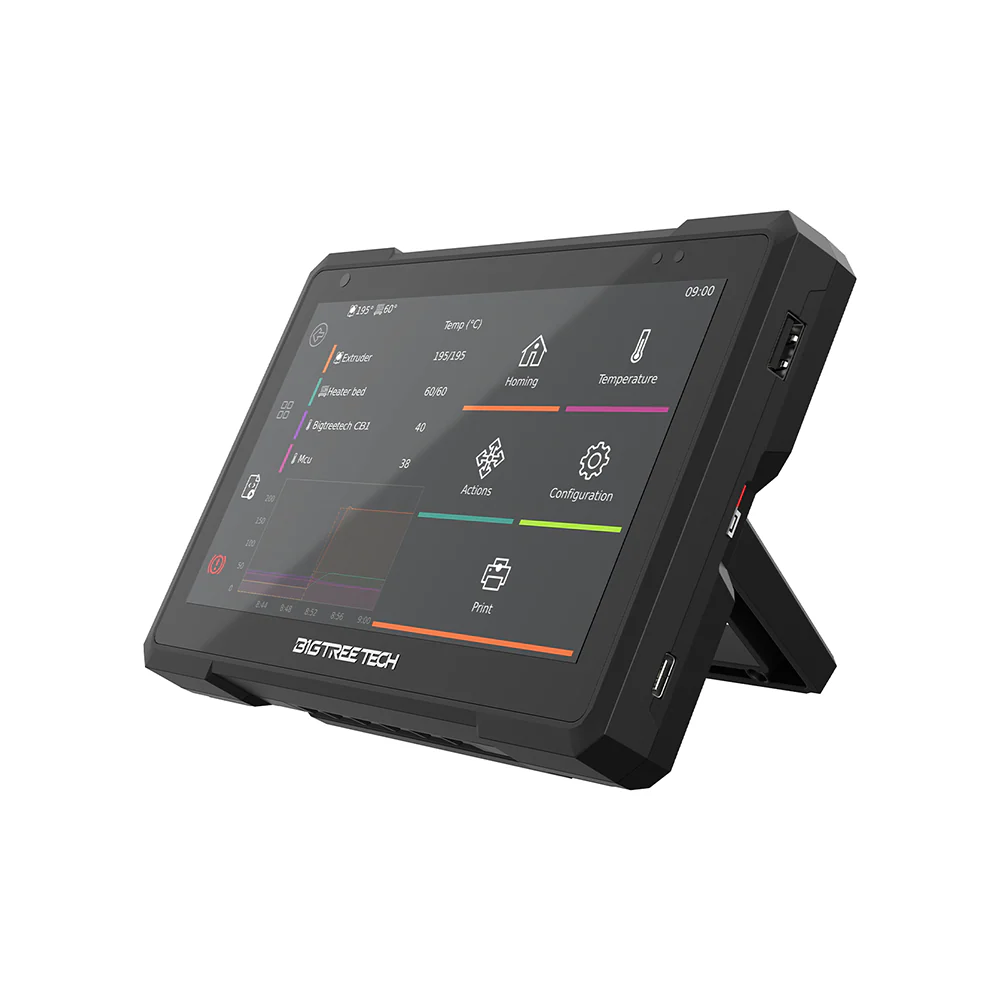

Magnetic Holder
Adopting a magnetic suction bracket, it is more convenient to adsorb when using the bracket.

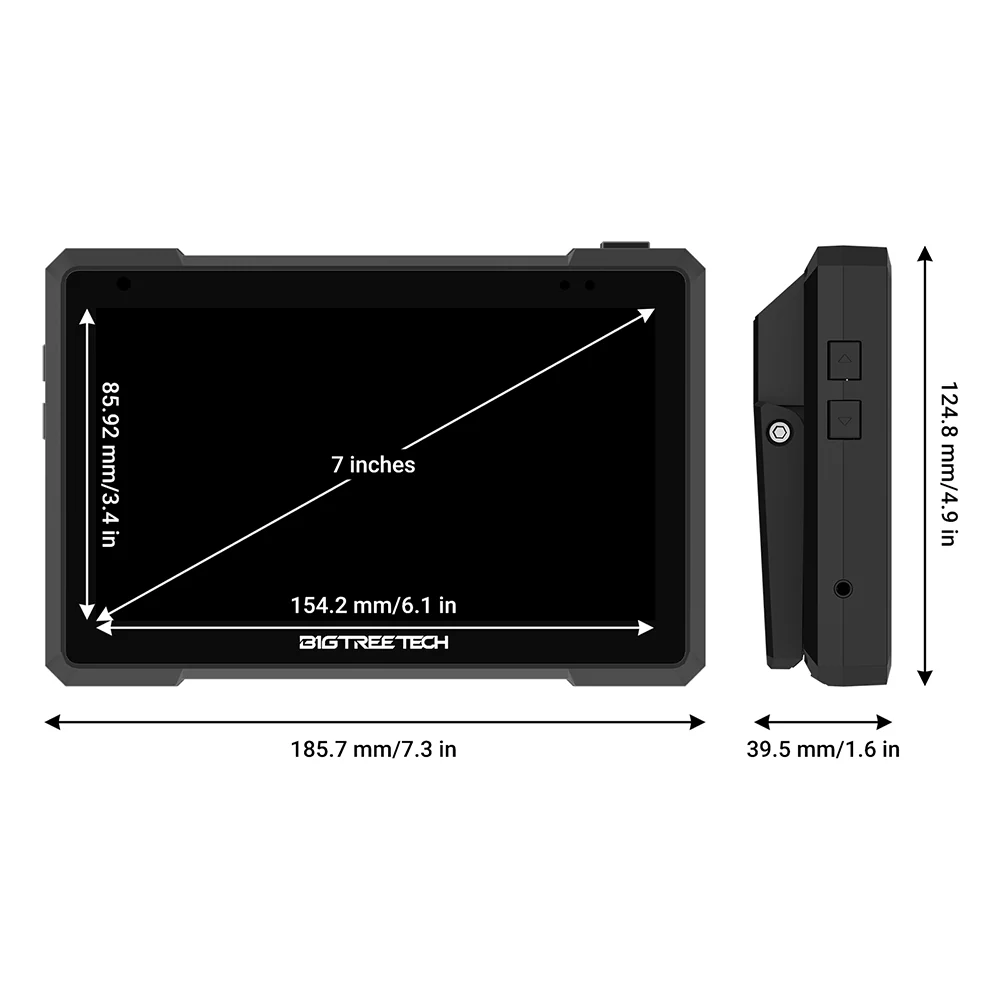

Dimensions & Specs
Size
7 inches
Resolution
1024×600
Refresh Rate
60Hz
Viewing Area
154.2×85.92
Viewing Angle
178°
Brightness
500 Cd/㎡
Input
DC12V 2A
Rated Power
7.3 W
Display Port
HDMI
Touch Port
USB-HID
PC Connection
Type-C (CM4 eMMC Writing OS)
Interface
USB 2.0×3, Ethernet, CAN, SPI, SoC-Card, 3.5mm Jack
Core Board: BIGTREETECH CB1 V2.2, 1GB, with a 32 GB Memory Card

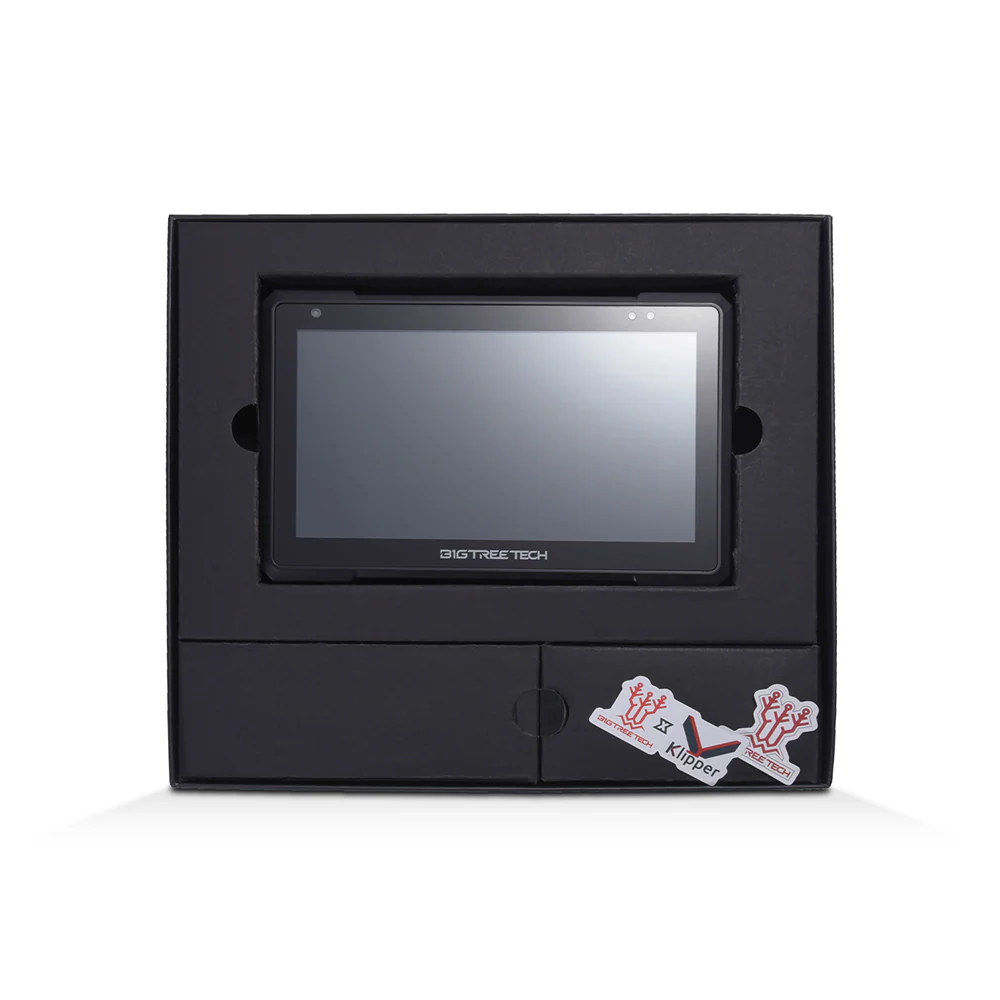

What's in the box?
